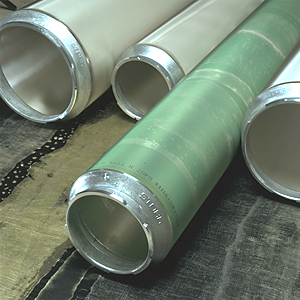

ROTARY PRINTING SCREEN

ROTARY PRNINTING SCREEN

· More tough and tensile, safety operation and multiple use.

· High strength, long life screen.

· New technology, more tough and tensile even after 180℃ heat.

· Good Open area evenly, ensure the difference within 1%.

· Quality conformity

· Good conglutination function of photosensitive medicament.

STANDARD SCREEN

REPEAT(MM)	530/640/688/725/919/914/1018
LENGTH(MM)	1410-3500
MESH	THICKNESS(μm)	OPEN AREA(%)	DIAMETER(μm)
25	160-165	30-32	720
40	145-150	28-30	318
60	115-120	18-20	161
70	110-115	16-18	131
80	110-115	16-18	105
100	105-115	15-17	74
105	105-115	15-17	94
125	100-105	14-16	79
125V	100-105	14-16	79
135	100-105	13-15	72
135V	100-105	13-15	72
155	100-105	12-13	60
165	100-105	12-13	71

Note: all "V" type screen, the hole arrangement angle is 45°, expecially suitable for
geometry printing, eg-square and line, all screen can be repeatedly used for 5-7 times.
