EURO BRAD

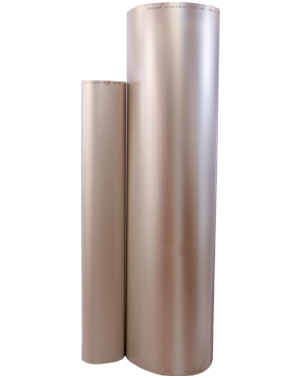

WALL PAPER SCREEN STANDARD
REPEAT (MM) | 640/914 | |
LENGTH(MM) | 1410-3500 | |
MESH | THICKNESS(μm) | OPEN AREA(%) |
40LR | 125 | 20 |
60LR | 125 | 14.5 |
70LR | 125 | 12.5 |
25SP | 150 | 50 |
40SP | 150 | 38 |
80SP | 150 | 25 |
100SP | 150 | 20 |
125SP | 150 | ≥15 |
40CH/A | 150 | 22 |
40CH/A | 200 | 38 |
50CH/A | 200 | 20 |
50CH/A | 200 | 12 |
30HX | 300 | ≥30 |
40HX | 300 | 30 |
60HD | 160 | 10 |
SP screen: Big open area and relatively less hole, especially suitable for decoration coating, dot printing |
CH screen: Suitable for medium or thicker printing. |
LR screen: Closed drawing coating, light coating, artificial leather, wall paper and floor. |
